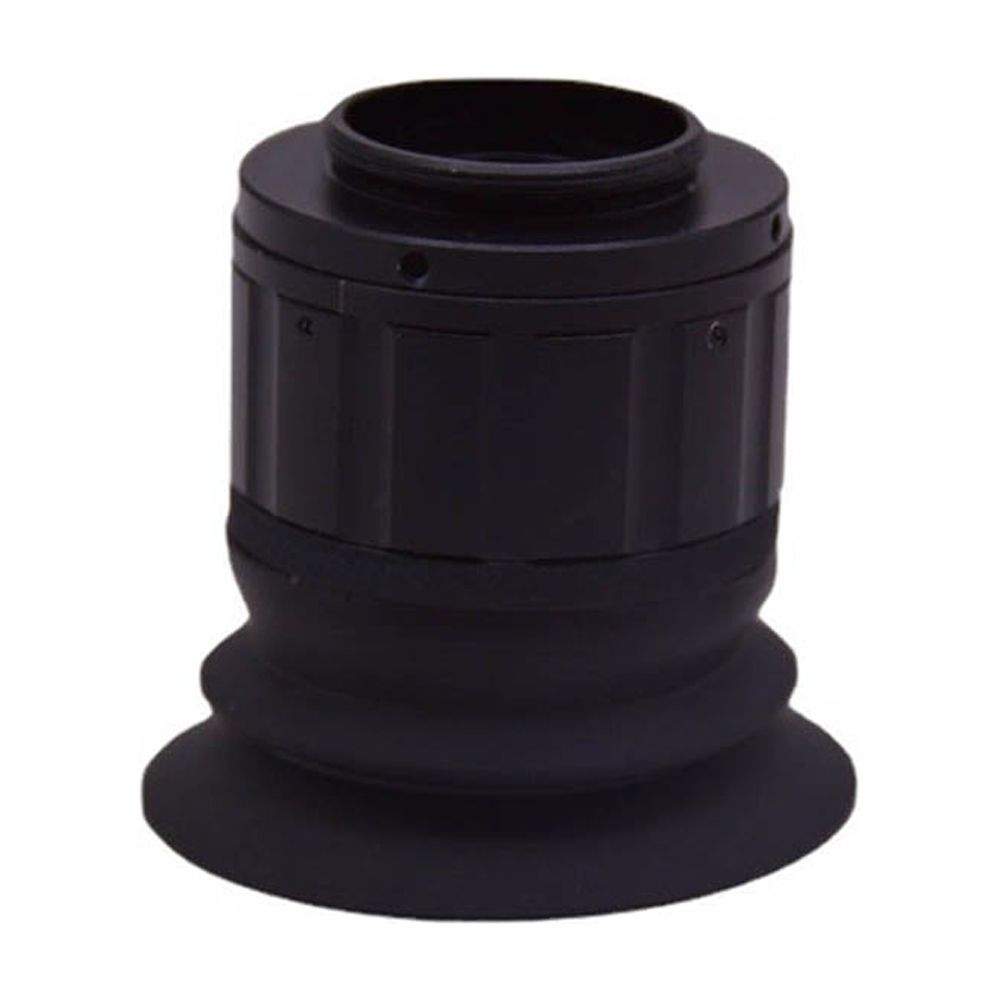

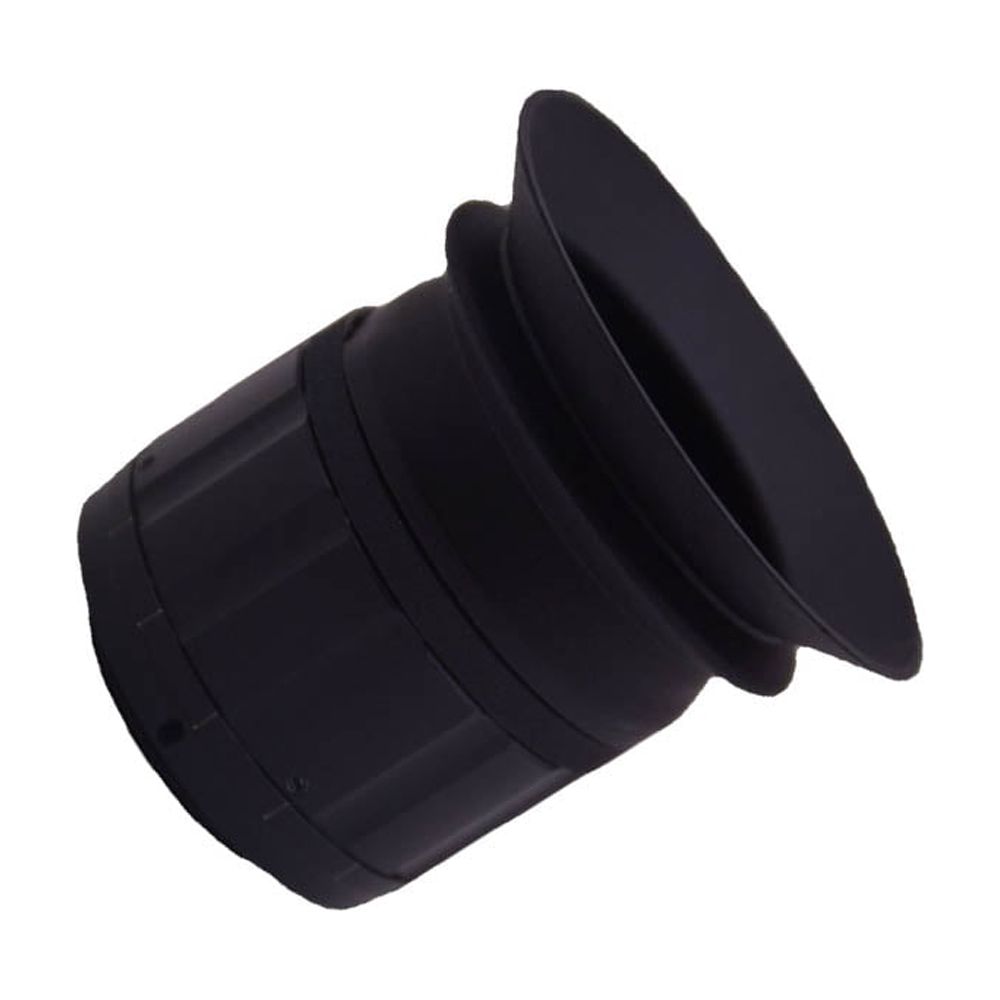

12X magnifying Lens Optical Prism lens 20.9mm focal length optical Prism Eyepieces for Microdisplays used in AR /VR Glasses EVF Thermal Imagering FPV Drones Applications

Description of 12X magnifying Optical lens This Optical lens can magnify the images/video of what the devices display, with 12X Manification and Focal Length 20.9MM ,which is applicable for the Microdisplays (0.5"Micro lcos Display/LCD Display) that used in the AR Glasses /VR Headsets/HDMS/EVF/Thermal Imagering/Night Vision Goggles. This Specification is ideal to the 0.5"Micro lcos Display/LCD Display

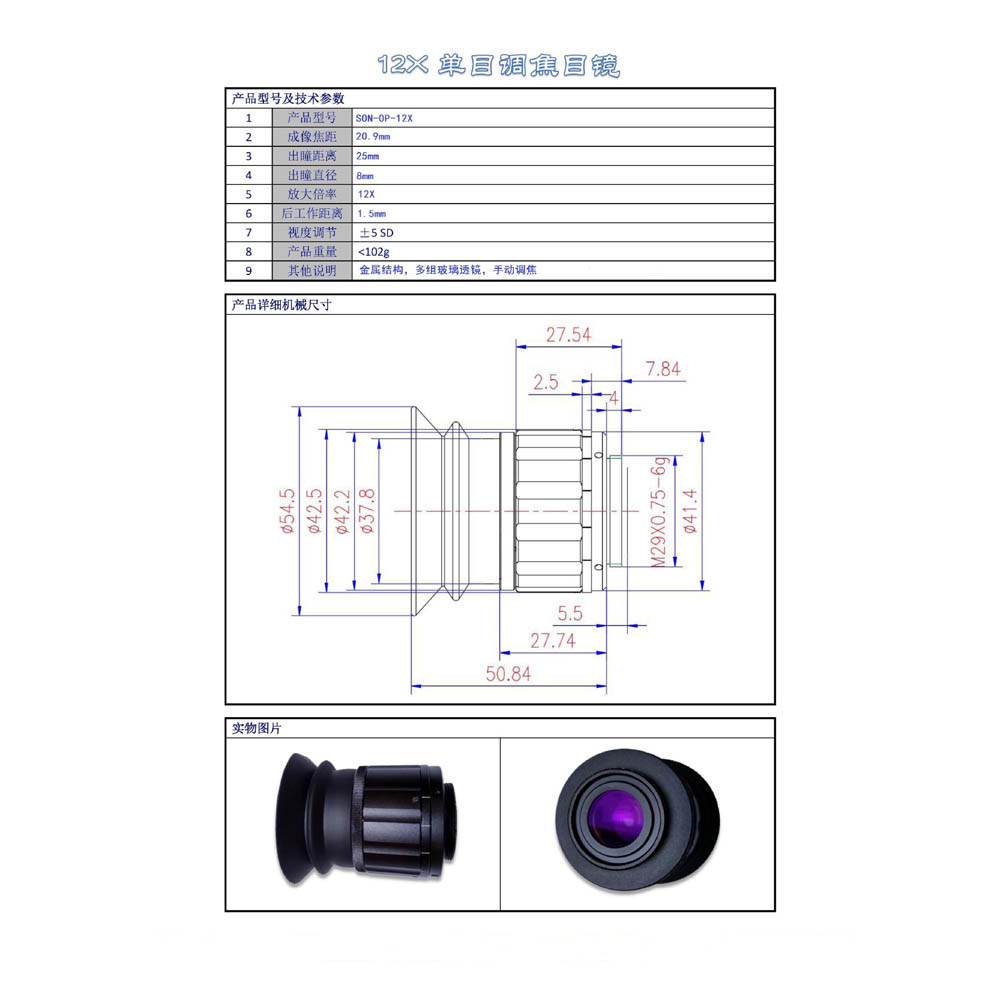

• ◆ 12X magnifying Optical lens Eyepiece Parameter:
• Model No:SON-0P-12X
• Focal Length:20.9MM
• Manification:12X
• Entrance Pupil Diamerer:8MM
• Exit Pupil Distance:25MM
• Optical Distrtion:<1%
• Weight:102g
• Mount:M29*0.75
• Apply to:0.5" microdisplay
• Lens Construction:Metallic+glass
• Diopter adjustment range:+/-5 SD
• Material:Several pieces of glass with metal structure
• Operating Temerature:-20℃~+80℃
• ◆Packing details:
• 12X magnifying Optical lens x 1pcs;
• ◆Applications:
• EVF (electronic viewfinders) for consumer cameras;
• AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
• Drones and FPV
• All types of scopes
• Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
• Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
• head mounted displays
• very small monitors,etc
