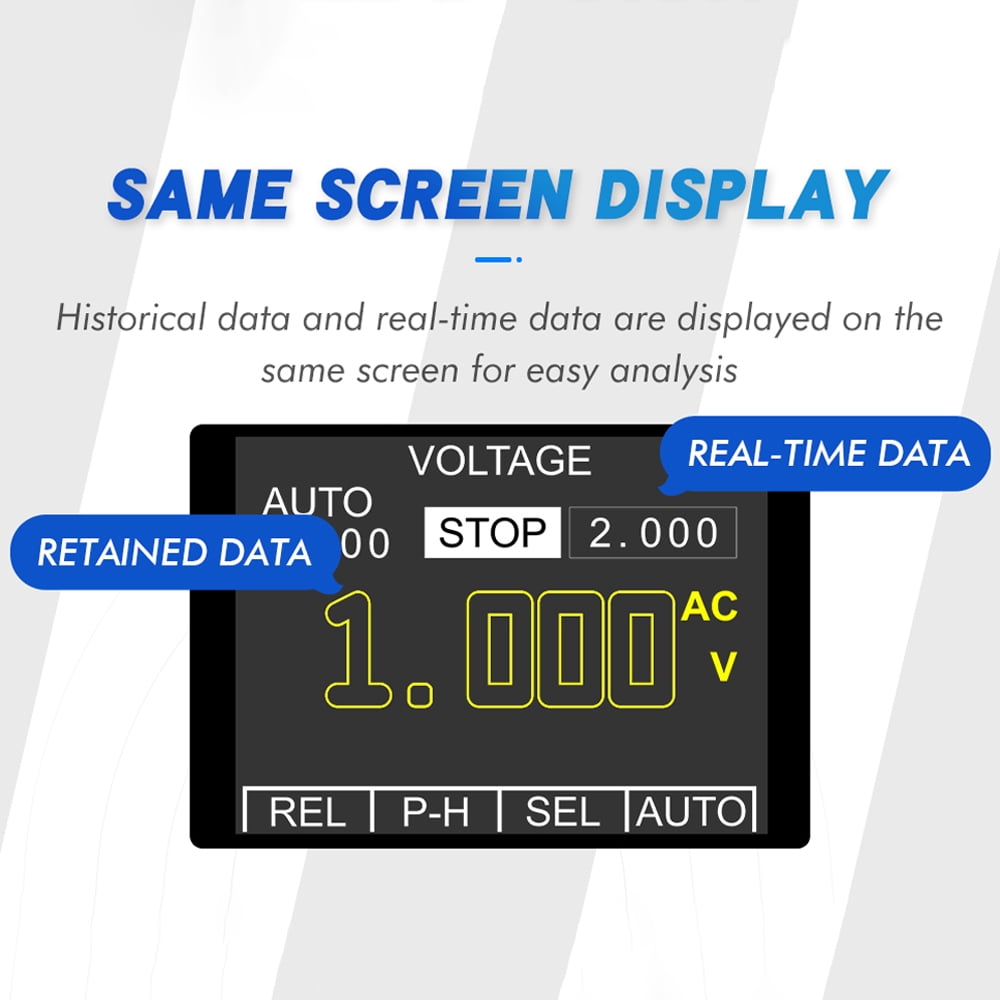

KKmoon kkm828 Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over , beep warning. historical records and real-time data are displayed on same screen for easy comparison and analysis of data. Oscilloscope multimeter 2 in 1, improve your work efficiency. mass storage, 100 data/10 waveforms. silicone button, sensitive pressing function dial, accurate gear. back bracket is tilted at 60° for easy viewing. AC/ voltage, AC/ current, resistance, capacitance, frequency, duty cycle, diode test, continuity test. no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display. color display is clearer, and secondary display at bottom provides more function menus.<br><br>Made of fine quality material, practical, easy to operate and use, wide application , has a long service .<br><br>Specifications:<br>Input resistance: 10M<br>Battery: 3 * AA battery (not included)<br>Material: ABS<br>Bandwidth: ACV/1MHz ACA/5KHz<br>Measurement mode: normal, automatic<br>Multimeter measurement: automatic + manual<br>consumption: about 80mA<br>Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude<br>Backlit: white<br>Display: 320*240 LCM<br>Display area: about 2.4 inches<br>Max. real-time sampling rate: 2.5Msps<br>Use time: low light about 5 hours<br>Use environment: 0~40, 75RH<br>Color: black<br>Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in<br>Storage: 100 data/10 waveforms<br>Item weight: 195g / 6.9ounce<br>Storage environment: -10~60, 90RH<br><br><br>Multimeter specification:<br>voltage:<br>: 400mV/4V/40V/400V/1000V<br>Uncertainty: 0.75% rdg+10dgt<br>AC voltage:<br>: 400mV/4V/40V/400V/750V<br>Uncertainty: 1.0% rdg+10dgt<br>current:<br>: 40mA/400mA/4A/10A<br>Uncertainty: 1.2% rdg+10dgt<br>AC current:<br>: 40mA/400mA/4A/10A<br>Uncertainty: 1.5% rdg+10dgt<br>Resistance:<br>: 400.0~40.00M<br>Uncertainty: 1.0% rdg+5dgt<br>Capacitance:<br>: 0.1nF~100, 10.00mF<br>Uncertainty: 2.0% rdg+10dgt<br>Frequency:<br>: 5Hz~10MHz<br>Uncertainty: 1.0% rdg+5dgt<br>Duty cycle:<br>: 0.1%~99.9%<br>Uncertainty: 1.0% rdg+5dgt<br>Diode test: voltage is about 5V, test current is about 1.5mA<br>Continuity test: judgment resistance about:&lt;50 beep<br>Fuse specifications: 500mA/250V, 10A/250V<br><br>Packing List:<br>1 * User Manual<br>1 * Protective Bag<br>1 * Graphical Multimeter<br>1 * Pair of Test Pens<br>

• One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.

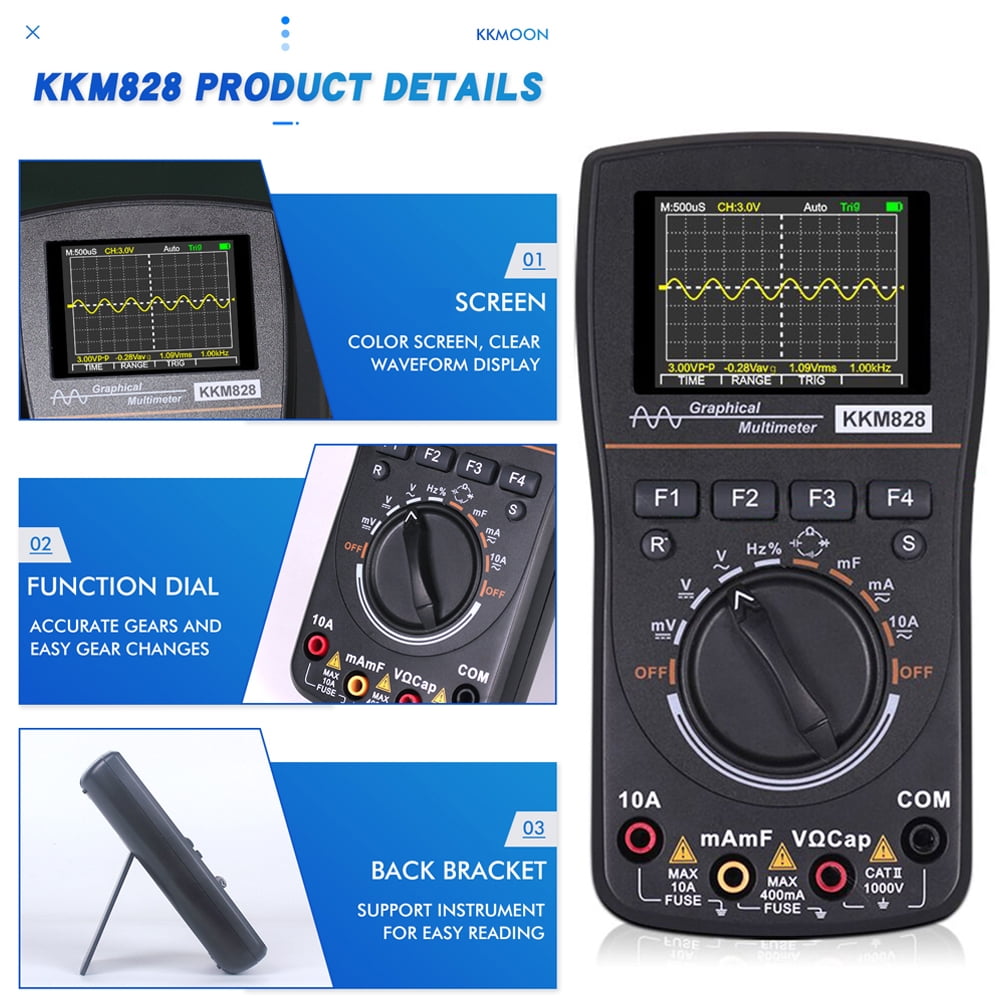

• 240*320 color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
• Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.
• Back bracket: the back bracket is tilted at 60° for easy viewing.
• Oscilloscope multimeter 2 in 1, improve your work efficiency.
